ABOUT THIS PRODUCT

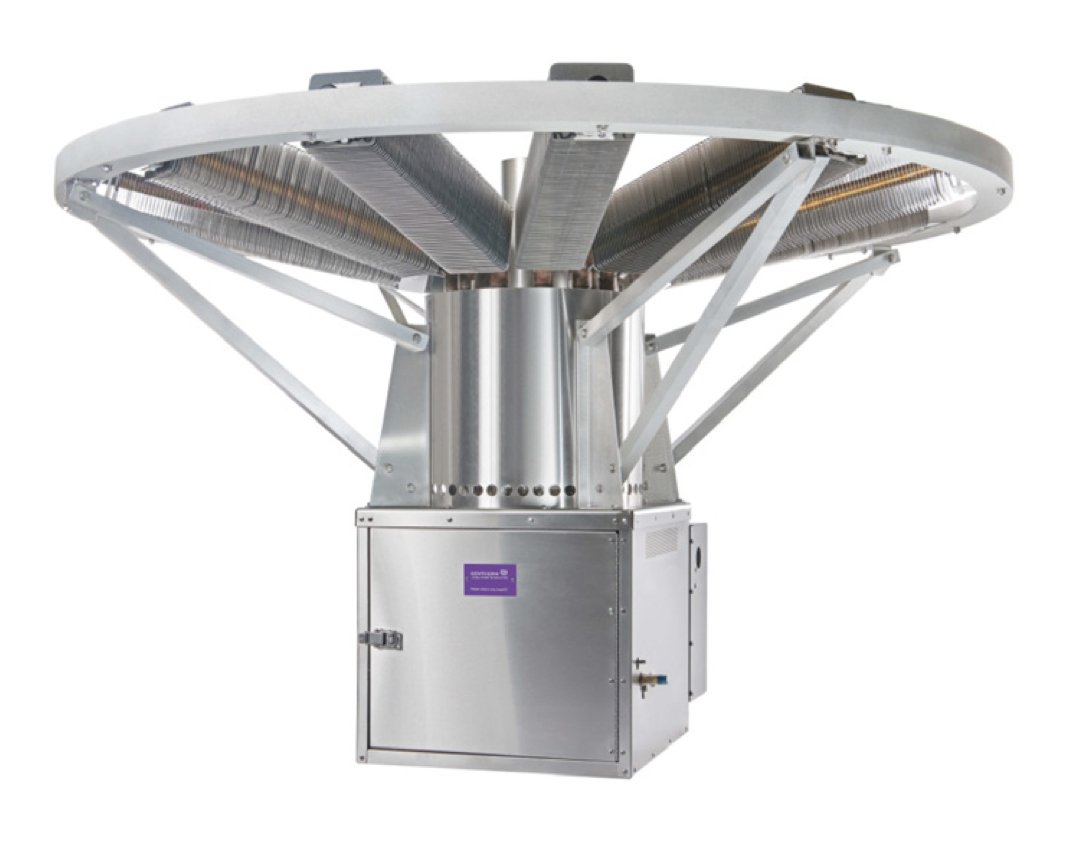

Gentherm Thermoelectric Generator 8550N-24-SI-SO-SD/Med with OT: Medium ambient, with OT shutdown, model 8550, power rating at 20 deg C, 550 Watts at 24V, natural gas: 48.0 m3/day (1695 Sft3/day), 1000 BTU/Sft3 (37.7 MJ/SM3) gas, max 115 mg/Sm3 (~170 ppm) H2S, max 120 mg/Sm3 H2O, max 1% free O2, propane: 7 6.0l/day (20.1 US gal/day), max. supply pressure: 172 kPa (25psi), min. supply pressure (NG): 103 kPa (15psi), min. supply pressure (LPG): 140 kPa (20psi), fuel connection: 1/4” male NPT (National Pipe Thread)

PRODUCT DETAILS

Gentherm Thermoelectric Generator 8550N-24-SI-SO-SD/Med with OT: Medium ambient, with OT shutdown

  • Model 8550
  • Power rating at 20 deg C
  • 550 Watts at 24V
  • Natural gas:
  • 48.0 m3/day (1695 Sft3/day)
  • 1000 BTU/Sft3 (37.7 MJ/SM3) gas
  • Max 115 mg/Sm3 (~170 ppm) H2S
  • Max 120 mg/Sm3 H2O
  • Max 1% free O2
  • Propane:
  • 7 6.0l/day (20.1 US gal/day)
  • Max. supply pressure: 172 kPa (25psi)
  • Min. supply pressure (NG): 103 kPa (15psi)
  • Min. supply pressure (LPG): 140 kPa (20psi)
  • Fuel connection: 1/4” male NPT (National Pipe Thread)
