ABOUT THIS PRODUCT

Gentherm Thermoelectric Generator 5120N-24-SI-SO-FA:Power rating at 20 deg C: 120 Watts at 6.7V / 108 Watts at 12V / 108 Watts at 24V / 108 Watts at 48V, electrical adjustment: 6.7V up to 11V / 12V 12-18V / 24V 24-30V / 48V 48-60V, reverse current protection included, output: terminal block which accepts up to 8AWG wire, opening for 3/4” conduit in the base of the cabinet, fuel natural gas: 8.8 m3/day (311 Sft3/day) of Std., 1000 BTU/Sft3 (37.7 MJ/SM3) gas max 115 mg/Sm3 (170 ppm) H2S max 120 mg/Sm3 H2O max 1% free O2, propane: 11.4 l/day (3.0 US gal/day), max. supply pressure: 172 kPa (25psi), min. supply pressure: 69 kPa (10psi), fuel connection: 1/4” male NPT (National Pipe Thread)

PRODUCT DETAILS

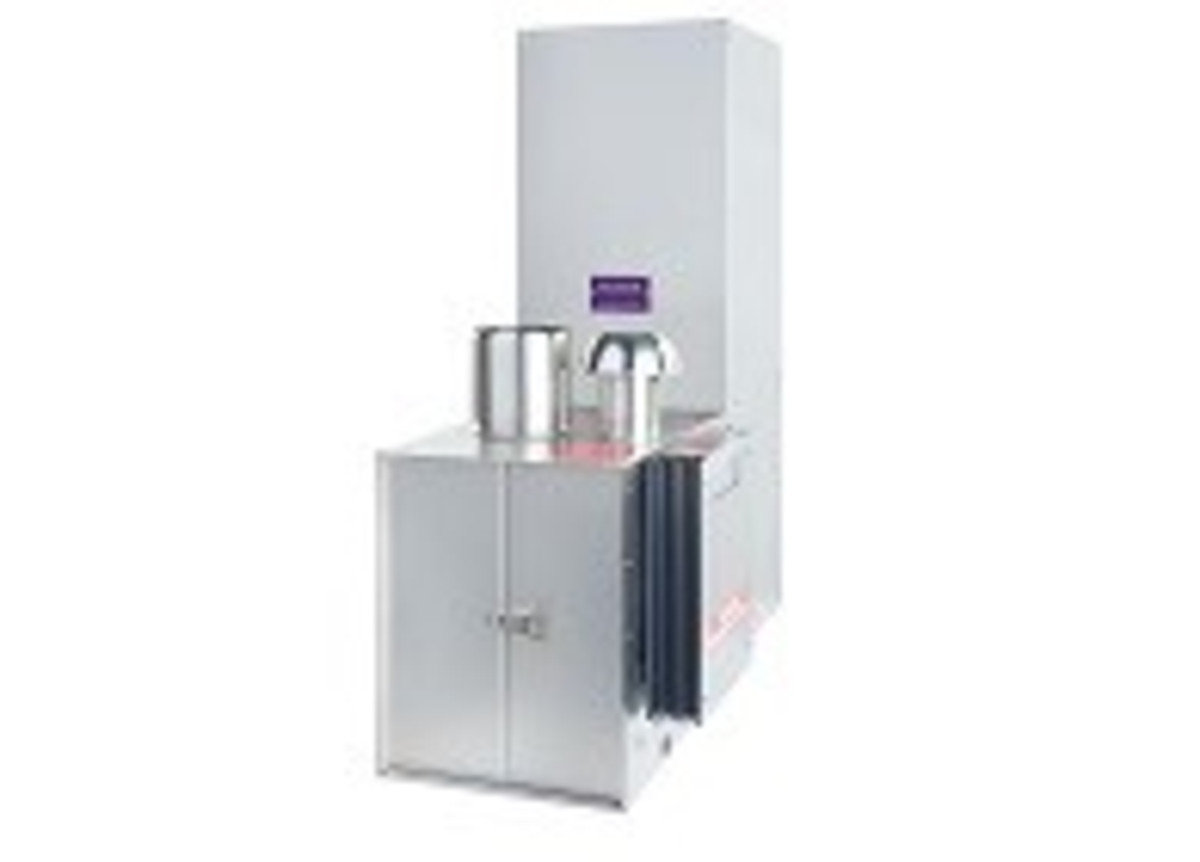

Gentherm Thermoelectric Generator 5120N-24-SI-SO-FA: Gentherm Global Power Technologies (GPT) Model 5120 Thermoelectric Generator contains no moving parts. It is a reliable, low maintenance source of DC electrical power for any application where regular utilities are unavailable or unreliable.

  • Power rating at 20 deg C: 120 Watts at 6.7V / 108 Watts at 12V / 108 Watts at 24V / 108 Watts at 48V
  • Electrical adjustment: 6.7V up to 11V / 12V 12-18V / 24V 24-30V / 48V 48-60V
  • Reverse current protection included
  • Output: terminal block which accepts up to 8AWG wire
  • Opening for 3/4” conduit in the base of the cabinet
  • Fuel natural gas: 8.8 m3/day (311 Sft3/day) of Std.
  • 1000 BTU/Sft3 (37.7 MJ/SM3) Gas max 115 mg/Sm3 (170 ppm) H2S max 120 mg/Sm3 H2O max 1% free O2
  • Propane: 11.4 l/day (3.0 US gal/day)
  • Max. supply pressure: 172 kPa (25psi)
  • Min. supply pressure: 69 kPa (10psi)
  • Fuel connection: 1/4” male NPT (National Pipe Thread)
