ASCO Solenoid Valves

ABOUT THIS PRODUCT

The ASCO Solenoid Valves Series 314, is a line of direct-acting general service solenoid valves, which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science applications.

PRODUCT DETAILS

• Durable Brass and Stainless Steel Constructions for Long Life
• No Minimum Operating Pressure Required
• Can be Used for Low-Volume Fluid Diversion
• Also Available in Low-Power, Intrinsically Safe, and Voltage Ranging Constructions
• A Limited Range of Globally Approved Explosion-Proof Enclosures are Available with this Series
• 3/2 Valve
• Universal Operation (Works Either Normally Open or Normally Closed) with NBR Disc
• 1/4” Pipe
• Stainless Steel Body
• Hazardous Explosion Proof
• 149 Strandard Ambient Temperature

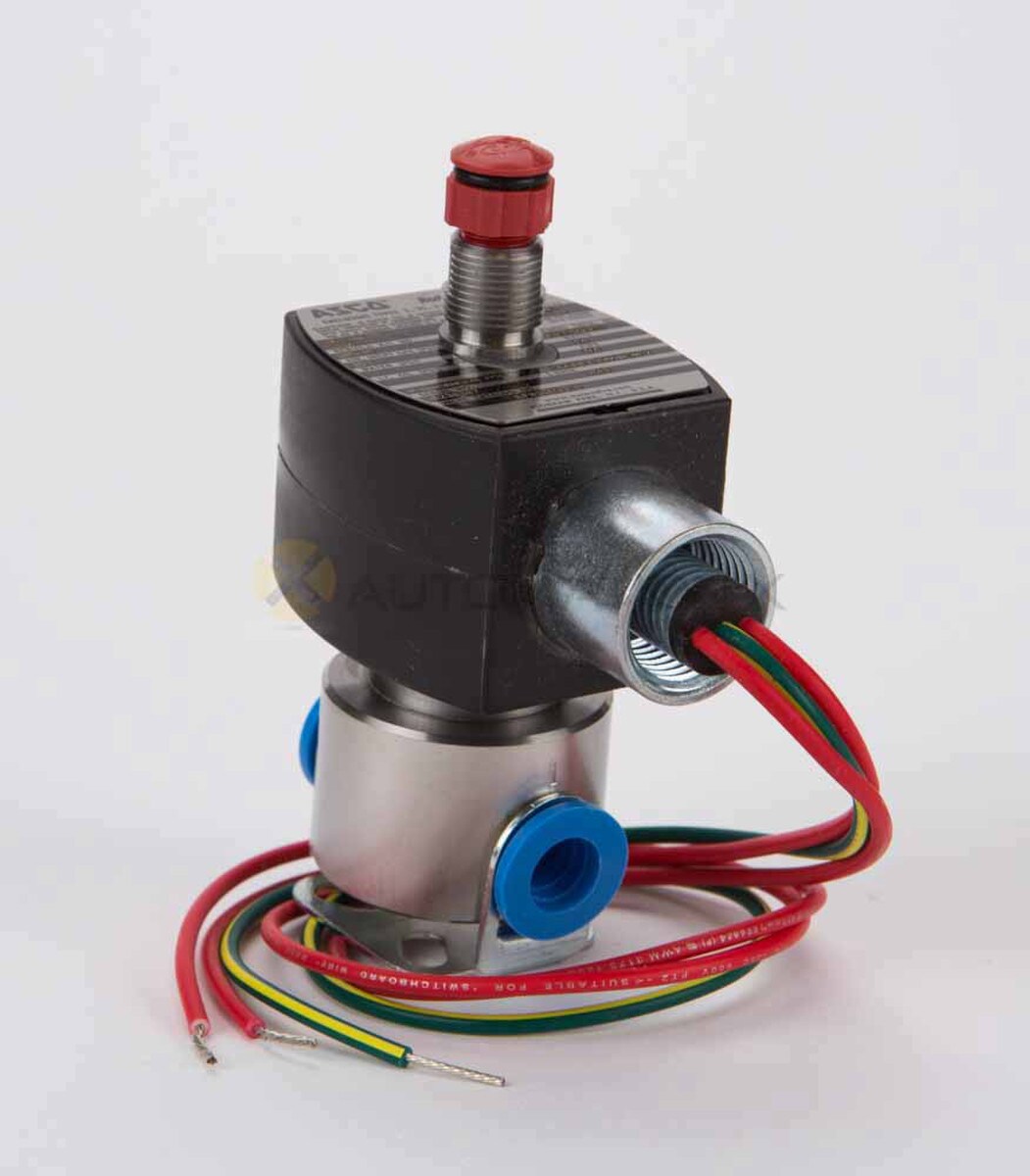

ASCO Solenoid EF8314H301-24DC

• 1/20” Orifice
• .06 Cv Flow Factor- Pressure to Cylinder / Cylinder to Exhaust
• 0-130psi Operating Pressure Differential (Air/Inert-Gas)
• 24VDC
• 0.55 Watt

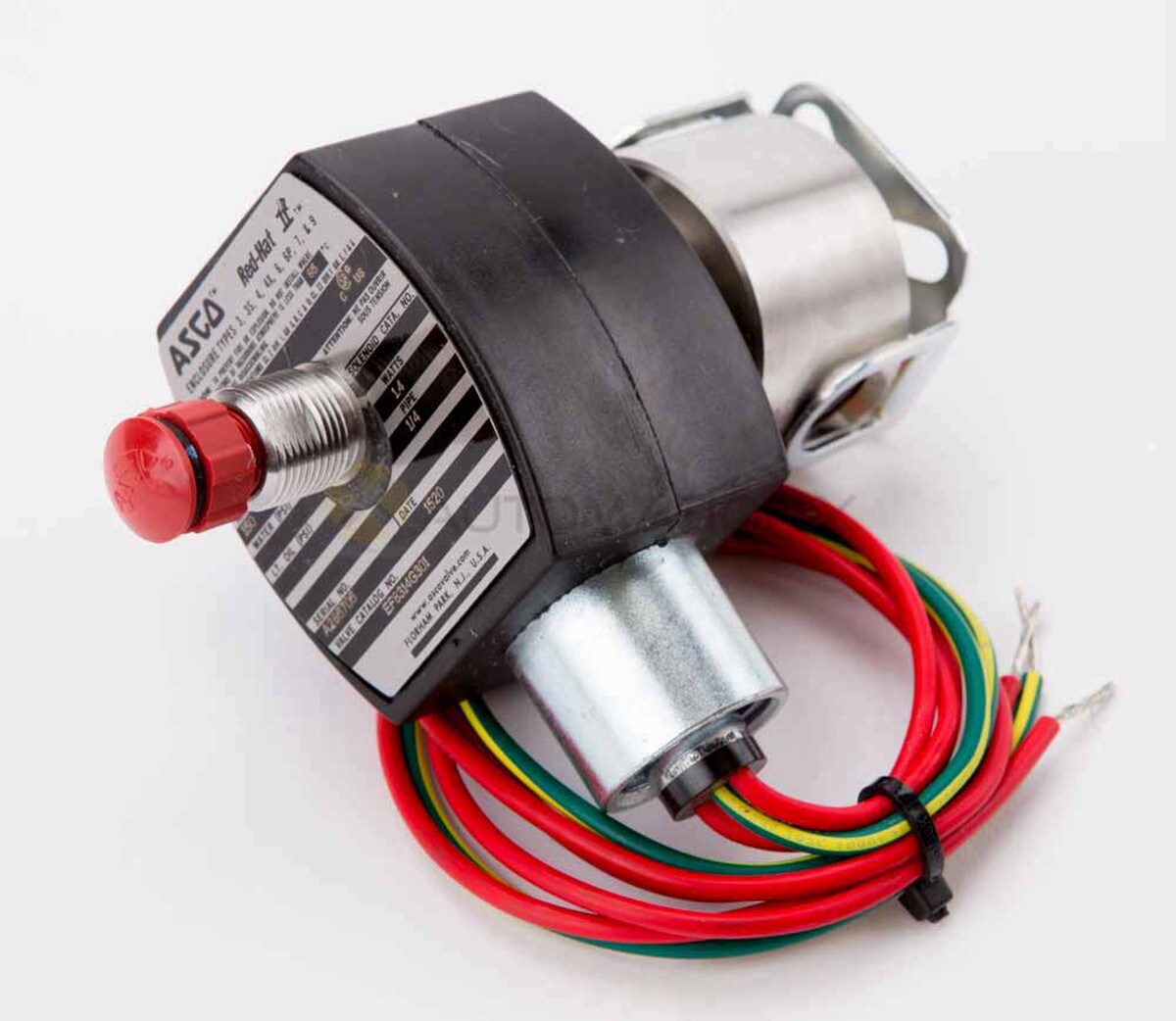

ASCO Solenoid EF8314G301-24DC

• 1/16” Orifice
• .06 Cv Flow Factor- Pressure to Cylinder / Cylinder to Exhaust
• 0-150psi Air/Inert Gas
• 24VDC
• 1.4 Watt

ASCO Solenoid EF8314H301-12VDC

• 1/20” Orifice
• .06 Cv Flow Factor- Pressure to Cylinder / Cylinder to Exhaust
• 0-130psi Operating Pressure Differential (Air/Inert-Gas)
• 12VDC
• 0.55 Watt

ASCO Solenoid EF8314G301-12DC

• 1/16” Orifice
• 0.08 Cv Flow Factor- Pressure to Cylinder / Cylinder to Exhaust
• 0-150psi Air Operating Pressure Differential
• 12VDC Operation
• 1.4 Watt
