ABOUT THIS PRODUCT

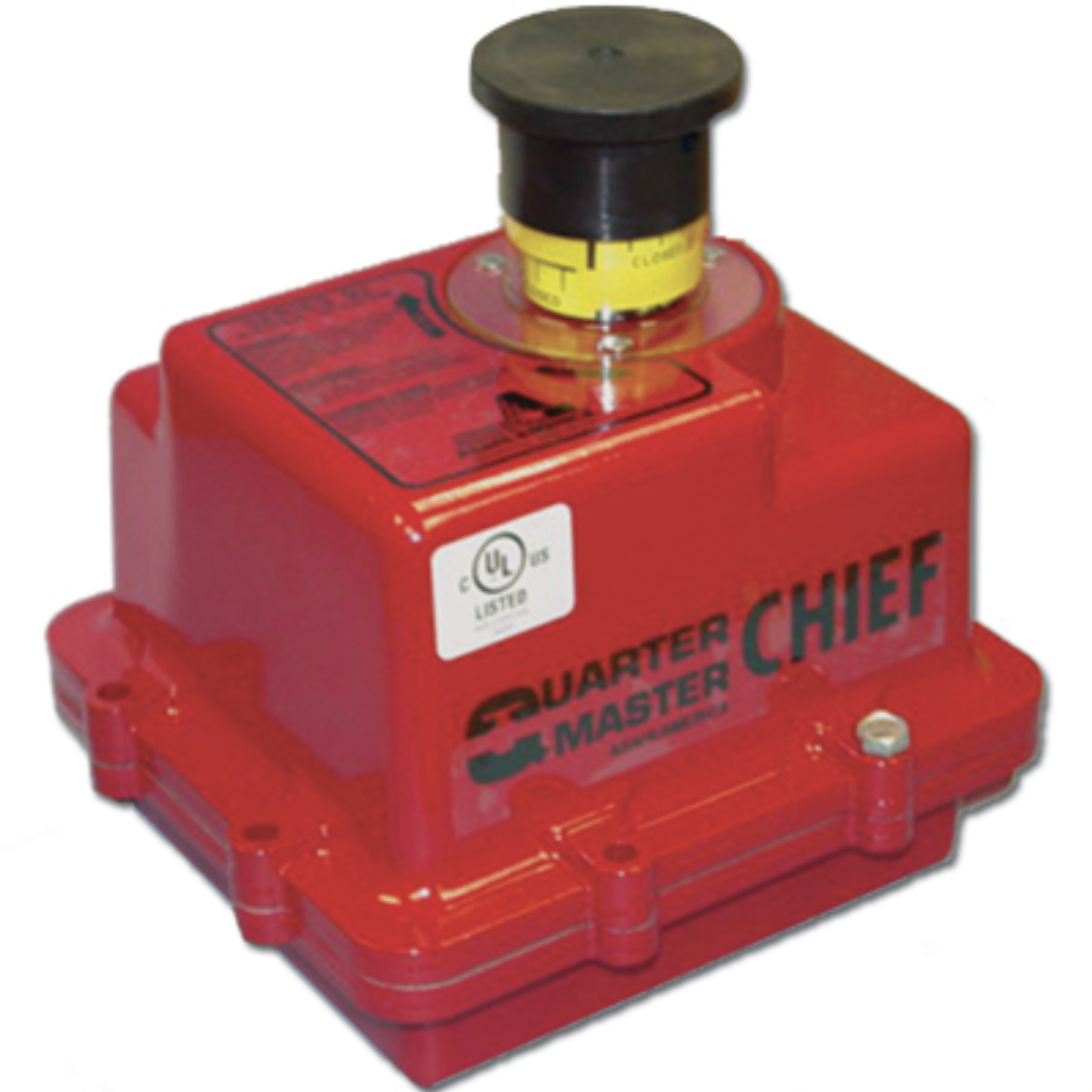

The Series 92 electric actuator is Asahi’s primary electric actuator for most butterfly valves, larger ball valves, multi-turn diaphragms, and gate valves. Standard features include a reversing, brushless, capacitor-run, single-phase motor, integral thermal overload protection for motor windings with automatic reset, declutchable manual override, limit switches, and a Type 4X thermally bonded powder coat finish weatherproof enclosure.
PRODUCT DETAILS
Features include 2-SPDT switches, output 400 in/lbs – 2000 in/lbs torque, conduit 1/2 NPT.
Size: S92, A92, B92, C92
Torque: 400-2000 in/lbs
Voltage: 120 VAC / 220 VAC / 12 VDC / 24 VDC / 12 VAC / 24 VAC
Amp Draw: 2.0 Amps or 4.0 Amps
Conduit Entry: Two (2) 1⁄2” FNPT
Max Ambient Temperature: 150o F Switches: Two (2) single pole, double throw (2-SPDT) 15 amp rated
Cycle Time per 90o: S92, A92: 15 seconds B92, C92: 32 seconds
Enclosure: UL1203 CL.I, Div. 1&2
